Click for Datasheet

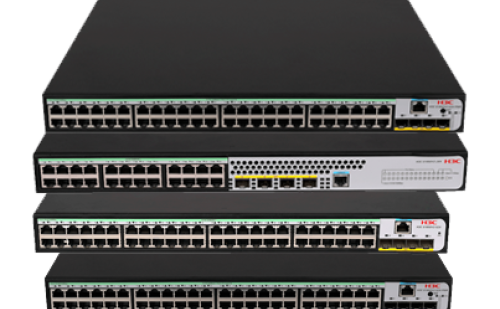

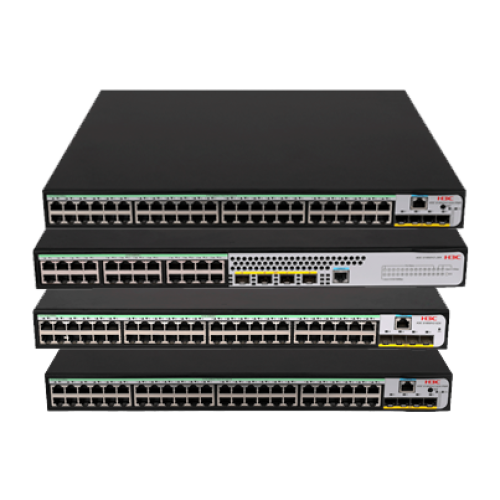

• - The layer 2 Gigabit access switch developed especially for meeting high-performance network requirements. Based on the high-performance access, it offers abundant security access policies and enhanced network manageability and maintenance. This makes it ideal for diversified network building scenarios, including government, small and medium-sized enterprises, general and vocational education, security monitoring, and hotels.
•
• - Models available:
•

  1. S1850V2-28X: 24*10/100/1000TX + 4*SFP Plus

  2. S1850V2-28X-HPWR: 24*10/100/1000TX + 4*SFP Plus

  3. S1850V2-52X: 48*10/100/1000TX + 4*SFP Plus

  4. S1850V2-52X-PWR: 48*10/100/1000TX + 4*SFP Plus

• Features

•

• - Multi-type port access:

• Comes with standard Gigabit copper ports and Ten-Gigabit optical ports, making it a good fit for complex network environments and network expansion.

• - Simplified Web management:

Provides convenient and intelligent Web management with visual port configuration and easy-to-operate pages.

• - Abundant features:

Supports abundant software features such as VLAN division, 802.3x, link aggregation, and IGMP Snooping.

• - High reliability:

• Supports STP/RSTP/MSTP link protection, built-in loopback test, cable detection, and remote loopback detection.

• - Comprehensive security control policies:

• Supports DoS attack detection, ARP anti-attack, TCP attack defense, and port security functions.

• - Green and energy-saving design:

• Implements the built-in intelligent port speed limit and energy-saving hibernation functions, and the whole device adopts various green energy-saving designs. It is also compliant with the EU RoHS standard for material environmental protection and safety.

  The S1850V2-28X switch is fan-less design, significantly reduce device power consumption and noise.

• - Power over Ethernet (PoE+):

• The PWR model of H3C S1850V2-X switch series supports enhanced power over Ethernet (PoE+) with a maximum power supply of 370W for the whole device and a maximum output power of 30W for a single port.

•

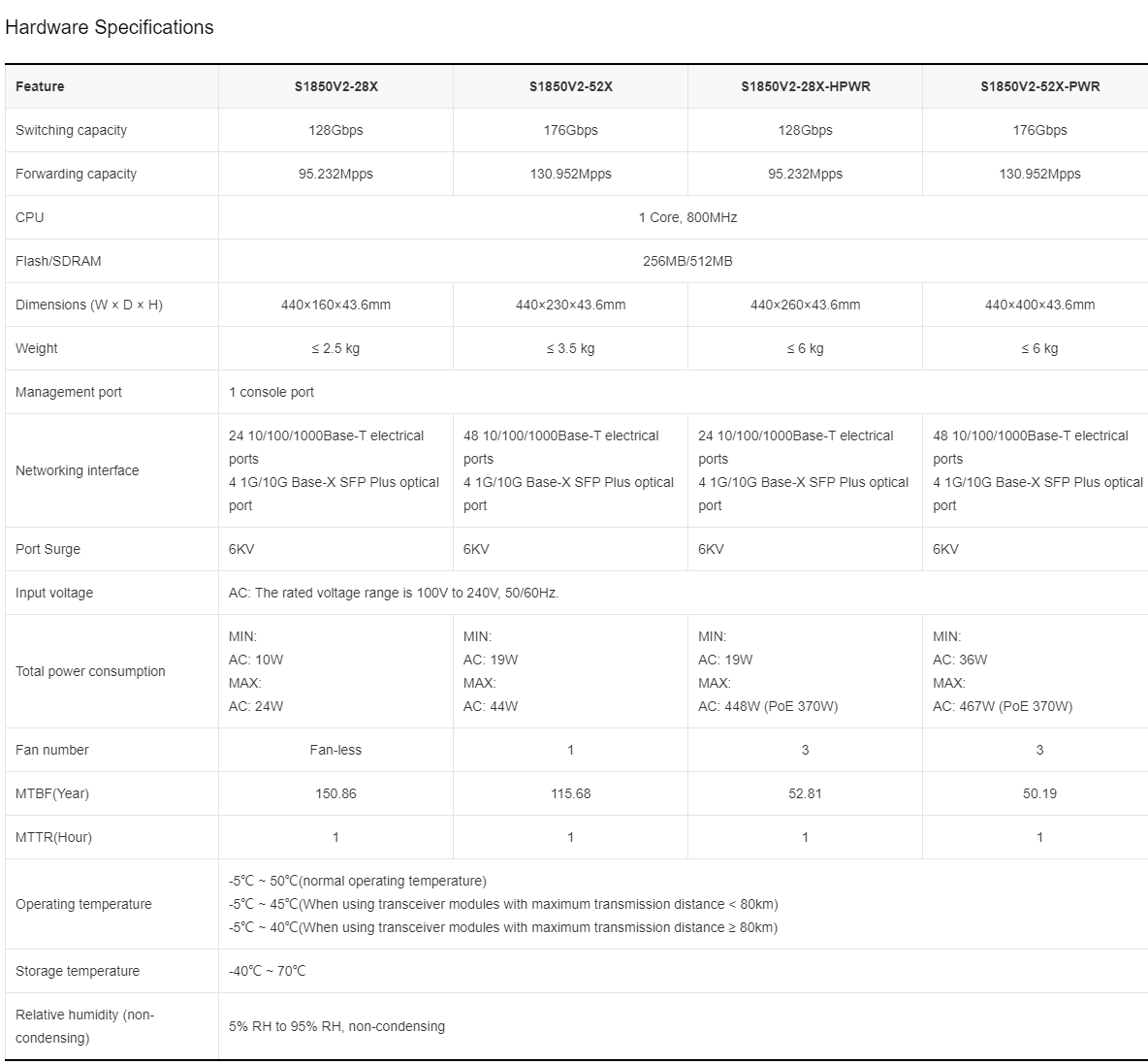

• Specification
•
