• - High performance and scalable 10GE access switching solution with fixed power or dual pluggable power, IRF feature for resiliency. The series offers OSPF/BGP and multicast, SDN enabled and flexible management.
•

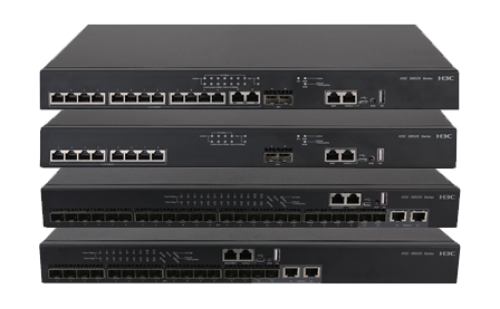

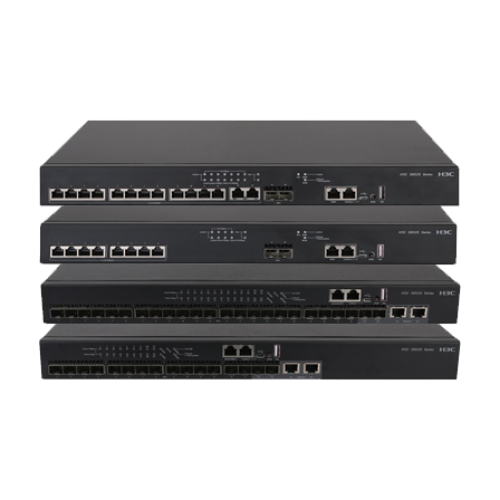

• - Models available :
•

  1. S6520X-18C-SI: 16 × 1/10G SFP+ ports, 1 × expansion slot, 2 × power module slots

  2. S6520X-26C–SI: 24 × 1/10G SFP+ ports, 1 × expansion slot, 2 × power module slots

  3. S6520X-26MC-SI: 24×1G/2.5G/5GBase-T Ports, 1×expansion slot, 2×power module slots

  4. S6520X-26MC-UPWR-SI: 24×100M/1G/2.5G/5GBase-T UPoE Ports, 1×expansion slot, 2×power module slots

  5. S6520X-26XC-UPWR-SI: 24×100M/1G/2.5G/5G/10GBase-T UPoE Ports, 1×expansion Slot, 2×power module slots

  6. S6520X-54XC-UPWR-SI: 48×100M/1G/2.5G/5G/10GBase-T UPoE Ports, 4×QSFP Plus Ports, 1× expansion Slot, 2 × power module slots

• Features
•
• - 10GE and Multi-Giga Forwarding:

  The switch offers all 10GE ports and working at wire-speed. It provides 10, 16, or 24 Ten Gigabit ports, each model offers both 10/1GE autosensing SFP+ ports and 1G/2.5G/5G/10G Base-T Multi-giga ports.

  H3C Intelligent Resilient Framework 2 (IRF2)

  H3C Intelligent Resilient Framework 2 (IRF 2) virtualizes multiple S6520X-SI switches into one virtual switch and provides the following benefits:



• - Scalability:
• IRF 2 allows you to add devices to the IRF 2 system easily. It provides a single point of management, enables switch plug-and-play, and supports software auto-update for software synchronization from the master to the new member devices. It brings business agility with lower total cost of ownership by allowing new switches to be added to the fabric without network topology change as business grows.
•
• - High availability:
• The H3C proprietary routing hot backup technology ensures redundancy and backup of all information on the control and data planes and non-stop Layer 3 data forwarding in an IRF 2 fabric. It also eliminates single point of failure and ensures service continuity.
•
• - Redundancy and load balancing:
• The distributed link aggregation technology supports load sharing and mutual backup among multiple uplinks, which enhances the network redundancy and improves link resources usage.
•
• - Flexibility and resiliency:
• The switch use standard 10GE ports instead of specialized ports for IRF links between IRF member devices. This allows customers to assign bandwidth as needed between uplink, downlink, and IRF system connections.

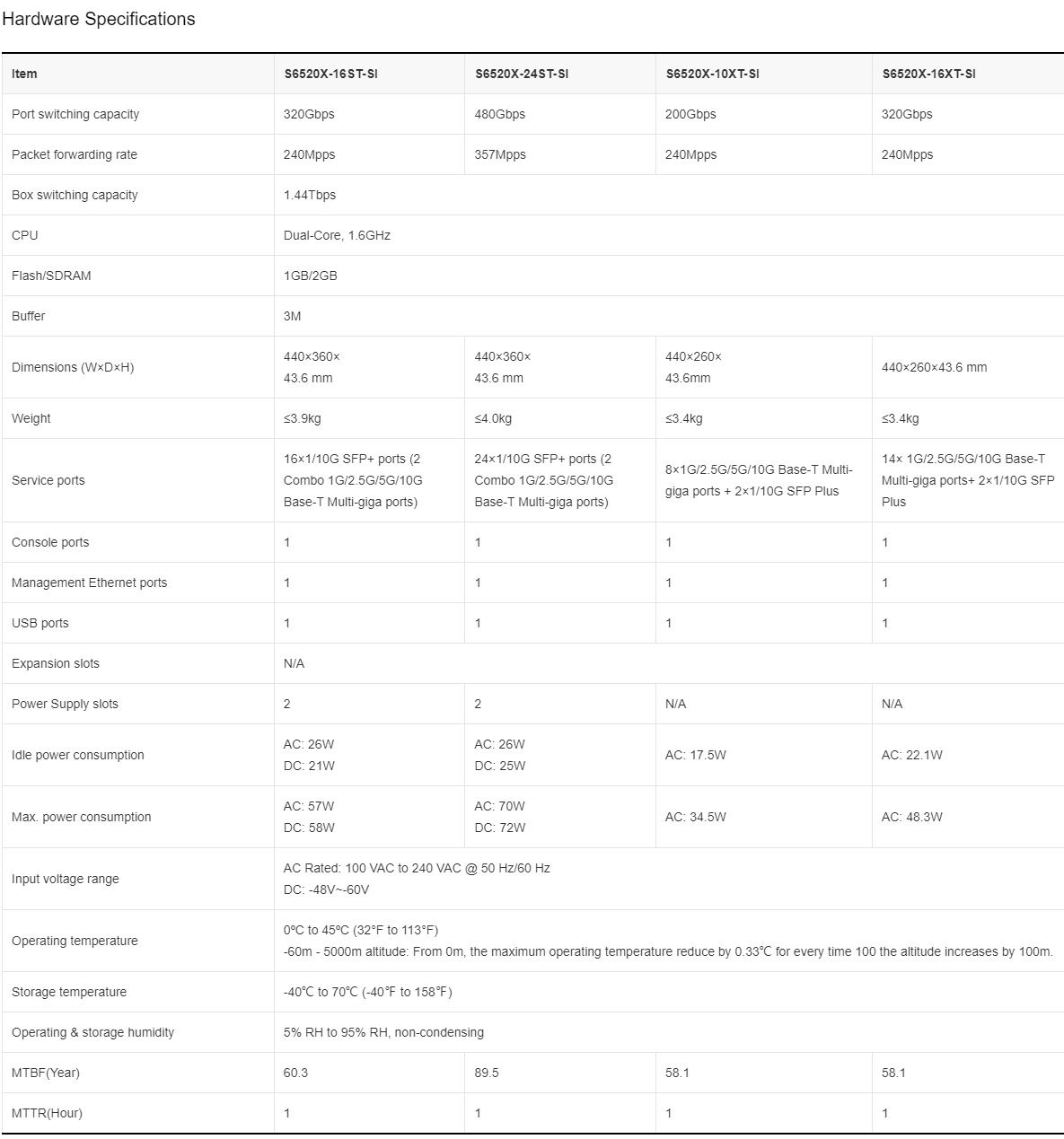

• Specification
•
