Rich Product Selections
3 Types of Computing and Storage Modules
10 Types of Interconnect Modules
Comprehensive Operation and Maintenance
Intelligent Management System
Intelligent Monitoring System
Optimized Resource Planning
12U Space
Unified Cooling and Power
Modular Design
Advanced Design
45 Degrees
42T Backplane Bandwidth
88 RAS Features
|
Detailed Specification
|
|

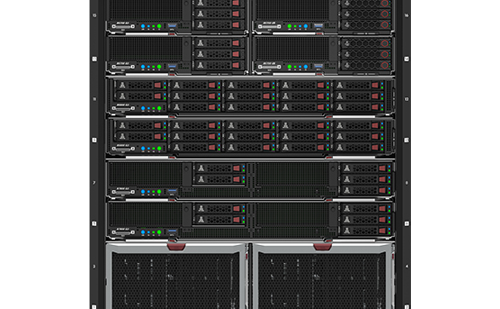

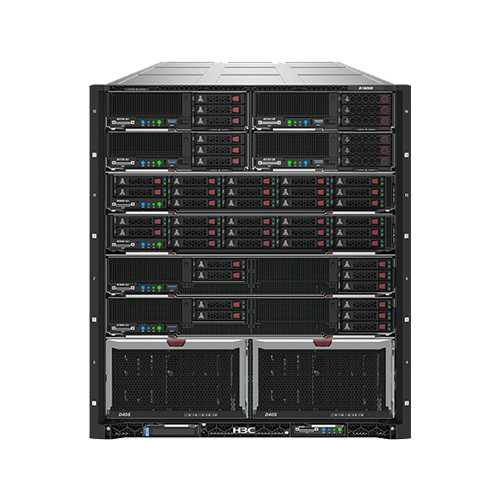

Enclosures Form Factor
|
12U
|
|
Blade Type
|
16 Half-width Blade Servers or 8 Full-width Blade Servers, Support Mix Installation
|
|
Power supply
|
6 Hot-Swap Power Supplies (Platinum/Titanium)
N+1/N+N/N+M Redundant Model
|
|
Fan
|
12 Hot-Swap Dual Turbo Fans
N+1 Redundant Mode
|
|
Backplane bandwidth
|
42T
|
|
Management Feature
|
Hot-Swap Touchable LCD Screen
Hot-Swap Redundant O&M Management Module
|
|
Interconnect Modules
|
4 pairs of Redundant Interconnect Module
1G Ethernet Switch Module
10G/25G Ethernet Switch Module
10G/25G Ethernet Pass-Thru Module
10G/25G Converged Switch Module
16G Fiber Channel Switch Module
16G/32G Fiber Pass-Thru Module
|
|
Standards
|
CE，UL etc.
|
|
Operating temperature
|
5°C to 45°C (41°F to 113°F) *
|
|
Dimensions (H × W × D)
|
12U Height
530 x 447x 898 mm (20.87 x 17.60 x 35.35 in)
|
*The Options may be different depending on the specific requirement, refer to related User Guide
